Auto loading and unloading system provides the operation almost without manpower. The machine can do the rods and even tube bending. 3-axis servo ensures the accuracy of the process. Welcome to inquire more details from STM.
- 24Hrs Hot Line:+86 151 5021 3488
- E-mail:stm@st-machinery.com
1. Fully automatic and CNC wire and tube bending machine;
2. Equipped with 3 programmable axis with left and right bending, can avoid most of interference;

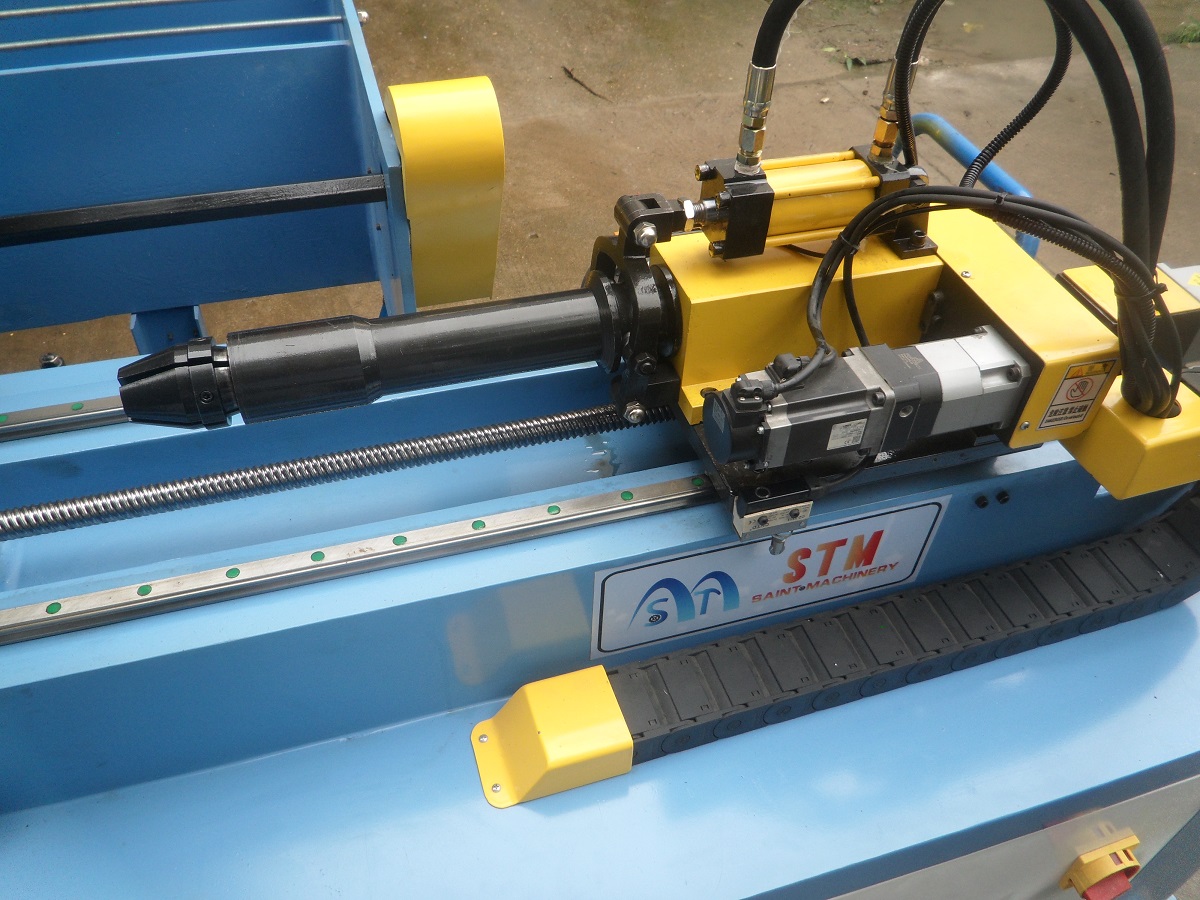

3. Feeding: servomotor drive with the reducer and the ball screw; Rotation: servomotor drive with reducer (the servomotor from Mitsubishi);

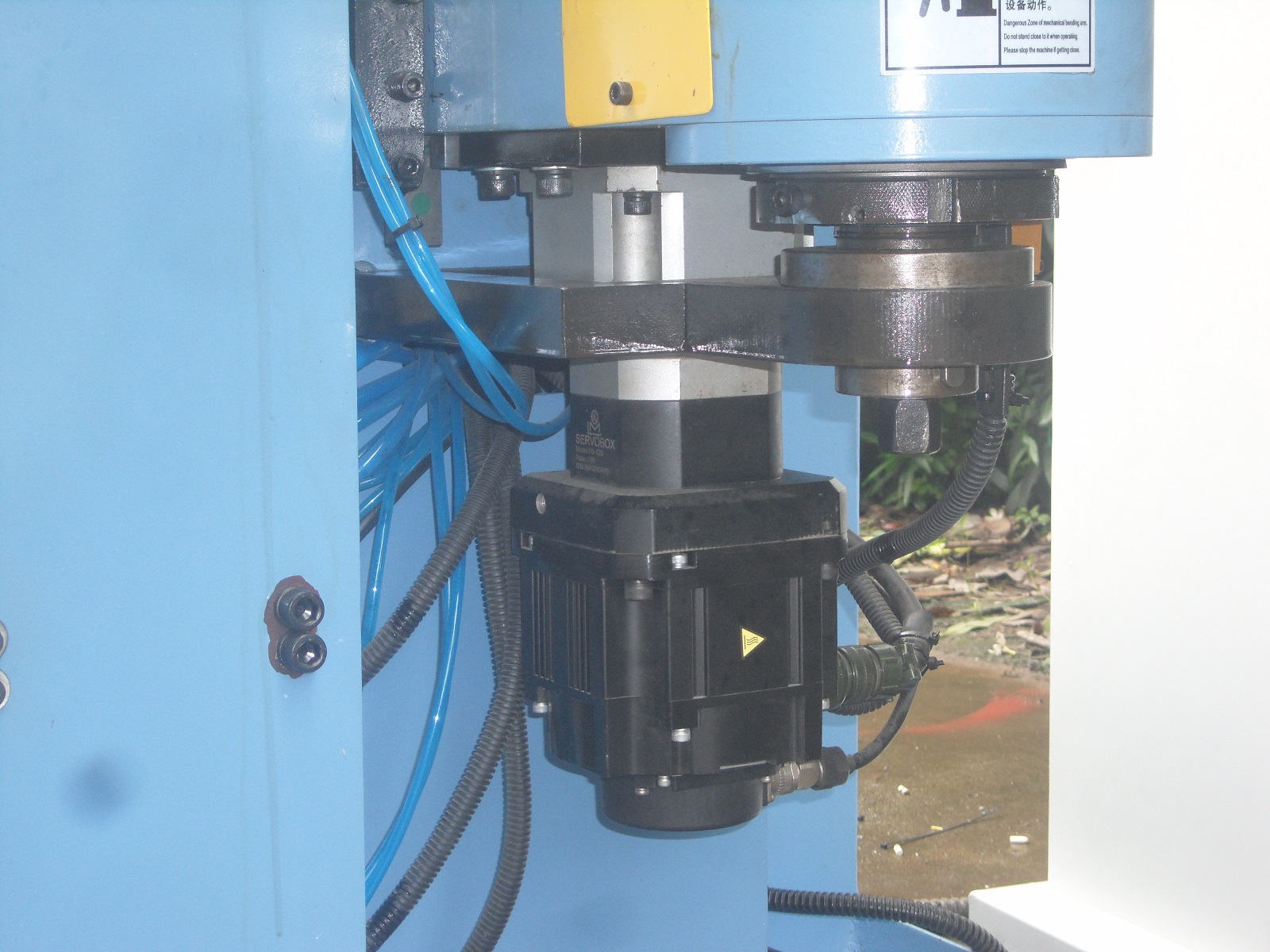

4. Bending: Servomotor bending with reducer;
5. Imported pneumatic system and Mitsubishi PLC unit;
6. Hybrid hydraulic system ensures the push bending clamping firmly enough;
7. Self-diagnostic system and warn the danger immediately;
8. Multiple groups pipe-bending information storage;
9. Touch screen system and human/machine interface control provide user friendly operations;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
11. Automatic robot hand for loading and unloading, can save the manpower a lot!
2. Equipped with 3 programmable axis with left and right bending, can avoid most of interference;
3. Feeding: servomotor drive with the reducer and the ball screw; Rotation: servomotor drive with reducer (the servomotor from Mitsubishi);
4. Bending: Servomotor bending with reducer;
5. Imported pneumatic system and Mitsubishi PLC unit;
6. Hybrid hydraulic system ensures the push bending clamping firmly enough;
7. Self-diagnostic system and warn the danger immediately;
8. Multiple groups pipe-bending information storage;
9. Touch screen system and human/machine interface control provide user friendly operations;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
11. Automatic robot hand for loading and unloading, can save the manpower a lot!
| Parameters | STB-15CNC-LR-AL |
|---|---|
| Bending capability |
Max Φ15×1. 5mm (steel tubes) Max Φ12mm (steel rods, iron bars) |
| Bending radius | 5~25 mm |
| Bending angle | 0~195° |
| Max clip pipe length | 750 mm |
| Pipe length available for auto loading | 700 mm |
| Bending speed | 280°/sec |
| Bending accuracy | ±0.1° |
| Feeding speed | 1000 mm/sec |
| Feeding accuracy | ±0.1 mm |
| Rotating speed | 720°/sec |
| Rotating accuracy | ±0.1° |
| Rotating motor power | 150W |
| Feeding motor power | 750W |
| Bending motor power | 1500W |
| System hydraulic pressure | 4Mpa |
| System pneumatic pressure | 0.8Mpa |
| Size | 2400×1600×1500mm |
| Weight |
750kg |
